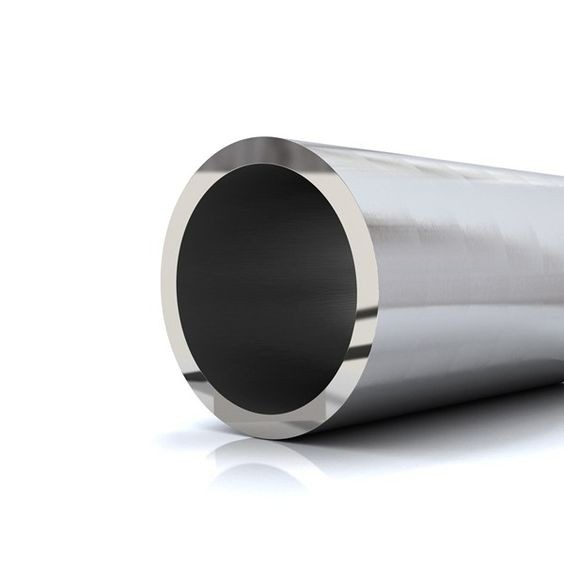

Titanium Exhaust Pipe GR2

Material: Titanium(Gr1, Gr2)
Standard :ASTM B861 ASTM B862
Certification: ISO9001:2015, EN10204.3.1
Diameter:2" 2.5" 3" 3.5" 4" 4.5" 5"
(45mm,50mm,60mm,63mm,76mm,89mm,102mm)
Length:1000mm, or cut as customer's requets
Technique: Rolled
Status: Annealed(M)
Type:Seamless,Welded
Application :Exhaust pipe

This Titanium Exhaust Pipe GR2 is equipped with advanced process, which has the advantage of light weight, high strength and superior mechanical properties. Due to the high performance, our Titanium Exhaust Pipe GR2 plays an important role in heat exchange equipment, such as column and tube heat exchangers, coil and tube heat exchangers, serpentine tube heat exchangers, condensers, evaporators and transmission pipes. On the other hand, it ensures longer service life for use and there is no special need of maintaining.

Commodity	Pure Titanium Pipe/Tubing
Tube Shape	Round Square Coil
Standard	ASTM B338 ASTM B862
Material	Gr1,Gr2,
OD	3-114mm or as customized
Wall Thickness	0.2-50mm or as customized
Length	Max 6m
Technique	Seamless tube(Forging-Extruding-Rolling-Straightening)
Surface	Bright/pickling
Sample	Sample Available
MOQ	1kgs

Grade Contrast

China		America	Russia	Japan
TA1	Industrially Pure Titanium	GR1	BT1-00	TP270
TA2	Industrially Pure Titanium	GR2	BT1-0	TP340

Mechanical Properties

Grade	Status	Tensile Strength		Yield Strength		Elongation	Area of Reducation
		Ksi	Mpa	Ksi	Mpa	%
		≥
GR1	Annealed	35	240	25	170	24	30
GR2	Annealed	50	345	40	275	20	30

Welcome to send an inquiry to mira@xjcmetal.com at any time if you need.
