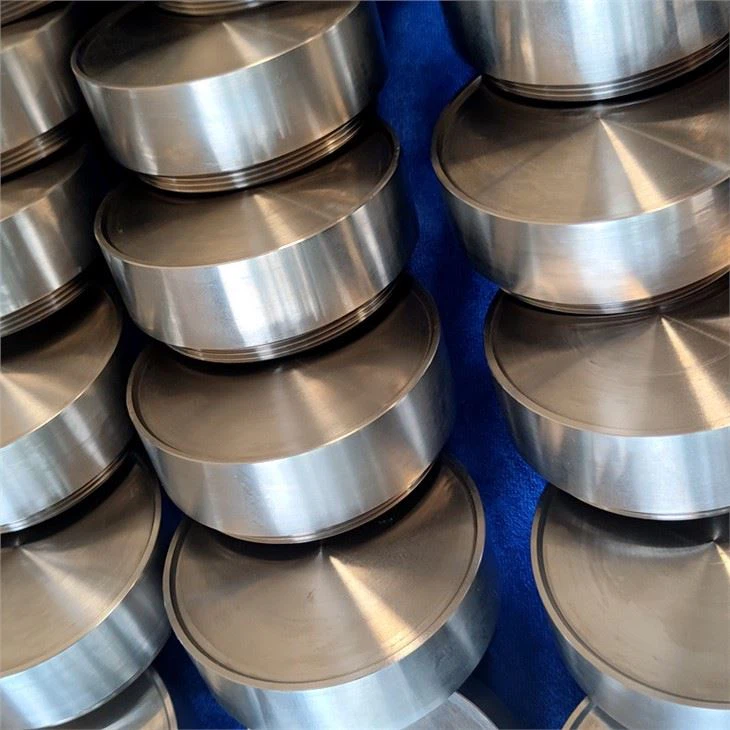

Titanium（ Ti ）Sputtering Target

Grade： Titanium (Gr1, Gr2, Gr5, Gr7,GR12)
Alloy target: Ti-Al, Ti-Cr, Ti-Zr etc
Titanium content： ≥99.5 (%)
Impurity content： <0.02 (%) Density： 4.51 or 4.50 g/cm3
Standard： ASTM B381; ASTM F67, ASTM F136
Size
1. Round target: Ø30--2000mm, thickness 3.0mm--300mm;
2. Plate Targe: Length: 200-500mm Width:100-230mm Thickness:3--40mm
3. Tube target: Dia:30-200mm Thickness:5-20mm Length:500-2000mm
4. Customized is available
Technique： Forged and CNC Machined
Application
Semiconductor sepa

The Titanium（ Ti ）Sputtering Target is made of titanium metal.As a metal, titanium is recognized for its high strength-to-weight ratio. It is a strong metal with low density that is quite ductile (especially in an oxygen-free environment), lustrous, and metallic-white in color. The relatively high melting point (more than 1,650 °C or 3,000 °F) makes it useful as a refractory metal. It is paramagnetic and has fairly low electrical and thermal conductivity.

Product name	Titanium target for pvd coating machine
Grade	Titanium (Gr1, Gr2, Gr5, Gr7,GR12) Alloy target: Ti-Al, Ti-Cr, Ti-Zr etc
Origin	Baoji city Shaanxi Province china
Titanium content	≥99.5 (%)
Impurity content	<0.02 (%)
Density	4.51 or 4.50 g/cm3
Standard	ASTM B381; ASTM F67, ASTM F136
Size	1. Round target: Ø30--2000mm, thickness 3.0mm--300mm; 2. Plate Targe: Length: 200-500mm Width:100-230mm Thickness:3--40mm 3. Tube target: Dia:30-200mm Thickness:5-20mm Length:500-2000mm 4. Customized is available
Technique	Forged and CNC Machined
Application	Semiconductor separation, Film coating materials, Storage Electrode coating, Sputtering coating, Surface coating, Glass coating industry.

Welcome to send an inquiry to mira@xjcmetal.com at any time if you need.
