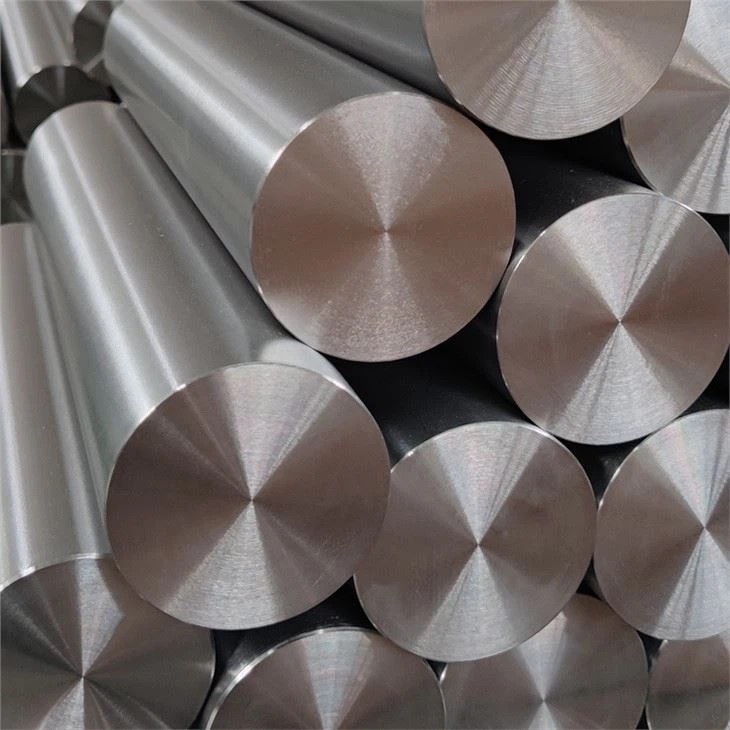

Titanium Rod Grade 23

Titanium Rod Grade 23 has high strength, low weight, and high corrosion resistance, and has certain biocompatibility for biomedical applications as an implant component. Gr23 Ti6Al4V Titanium rod is a kind of high purity titanium, which can be used in medical, dental, etc., because of its good fatigue strength and low modulus, it is mostly used in chemical biotechnology.

Titanium Rod Grade 23 is the higher purity version of Ti 6Al-4V. It has a superior damage tolerance to other alloys. These benefits make Ti 6AL-4V ELI the ultimate dental and medical titanium grade and can be used in biomedical applications such as implantable components.

Titanium Rod Grade 23 Standards: ASTM F136, ASTM B348, AMS4931

Product Shapes: round bar, square bar, hex bar, rectangular bar

Titanium Rod Grade 23 Application Fields:

• Manufacturing

• Construction industry

• Medical industry

• Marine navigation

• Aircraft aviation

• Chemical engineering

• Sports equipment

Standard	ASTM B348/ASME SB348, ASTMF67, ASTM F136, ISO-5832-2(3), AMS4928, MIL-T-9047G, JIS etc
Grade	TA1-TA4, TA7-TA10, TA15-TA18, GR1-GR5, GR6,GR7, GR9, GR11, GR12, TI-6AL-4V, TI-6AL-4VELI,GR23
Diameter	5-350mm
Length	Max6000mm
Technique	Forging ,Machining
Surface	acid surface or polishing, sand blasted surface
Shape	Round, flat, square, hexagonal
Application	Metallurgy, electronics, medical, chemical, petroleum, pharmaceutical, aerospace, etc.

Mechanical Properties (ASTM B348)

Tensile strength, Mpa

(min)

Yield strength, MPa

(min)

Elongation, %

(min)

Reduction of Area, %

(min)

828

759

Chemical Component (WT%)

Al	V	N	C	H	Fe	O	Residuals
Al	V	max	max	max	max	max	Max each	Max total
5.5-6.5	3.5-4.5	0.03	0.08	0.0125	0.25	0.13	0.1	0.4

For more information on Titanium Rod Grade 23, please contact us.
