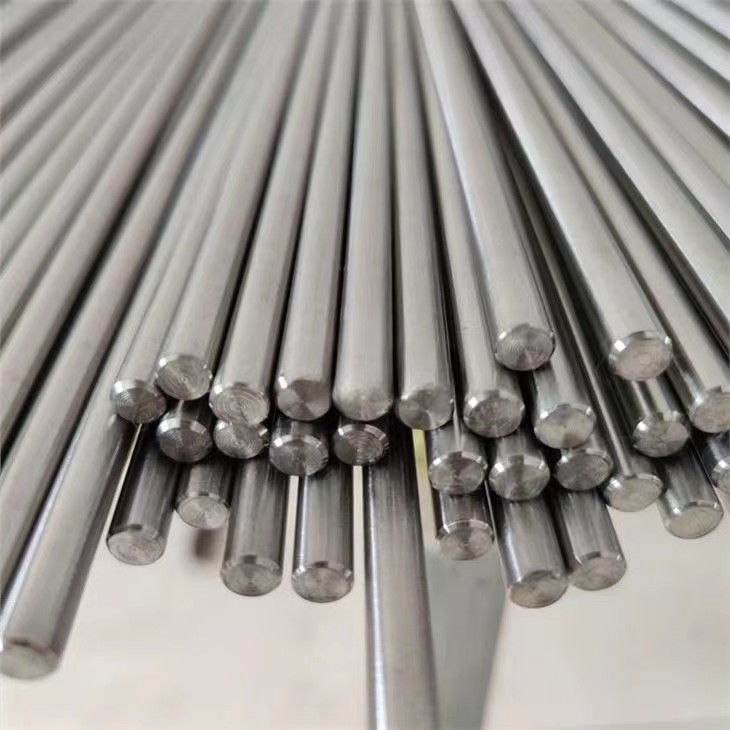

Gr9 Titanium Alloys Bar

Gr9 Titanium Alloys Bar specifications: diameter 8 -- 200MM*L
Gr9 Titanium Alloys Bar chemical composition: Ti-margin
Al: 2.0-3.5 ，V：1.5 to 3.0
Fe < 0.25， C < 0.08， N < 0.05 ，H < 0.015， O < 0.15
Mechanical properties of Gr9 Titanium Alloys Bars: tensile strength > 650MPA
Yield strength > 525MPA
The elongation is >8%
The reduction of section > 20%

Gr9 Titanium Alloys Bar is a medium strength alloy with good weldability and cold fabricability for mildly reducing to mildly oxidizing media.

Gr9 Titanium Alloys Bar specifications: diameter 8 -- 200MM*L

Gr9 Titanium Alloys Bar chemical composition: Ti-margin

Al: 2.0-3.5 ，V：1.5 to 3.0

Fe < 0.25， C < 0.08， N < 0.05 ，H < 0.015， O < 0.15

Mechanical properties of Gr9 Titanium Alloys Bars: tensile strength > 650MPA

Yield strength > 525MPA

The elongation is >8%

The reduction of section > 20%

Standard	ASTM B348,ASTM F136,ASTM F67,AMS4928
Grade	Titanium Gr1,Gr2,Gr3,Gr4,Gr5(Ti-6Al-4V),Gr7(Ti-0.2Pd),
Grade	Gr9(Ti-3Al-2.5V),Gr12(Ti-0.3Mo-0.8Ni))etc.
Diameter	5mm~350mm
Certificates	ISO9001:2015. The third test report is available,such as SGS,TUV,BV
Shape	Round bar, Square /flat bar, Hexagonal bar, Rectangle bar
Techniques	Hot or cold rolling forging or annealed
Delivery time	5-10 working days
Application	Industrial, Medical, Salt-making, Petrochemical, Metallurgy, Electronics, Chemical

Grade	Technology	Standard	Specification(mm)
Gr1.Gr2.Gr4.Gr5.Gr7.	Forging	ASTM B348 F136 F67	Φ(60~350)X≤4000
Gr9.Gr12. Gr5 Eli	Rolling	ASTM B348 F136 F67	Φ(6~100)X≤6000
