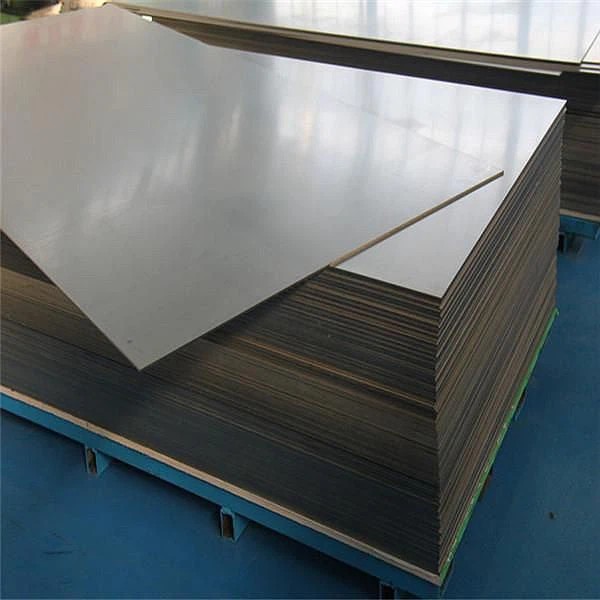

Gr12 Ti-0.3Mo-0.8Ni Titanium Sheet

Appearance: Silver grey white metal
Melting point: 194k (1668°C, 3034°F)
Boiling point: 3560 K (3287°C, 5949°F)
Density (near room temperature) : 4.506 g/cm3
Liquid time (melting point) : 4.11 g/cm3
Heat of fusion: 14.15 kJ/mol
Heat of vaporization: 425 kJ/mol
Molar heat capacity: 25.060 J/(mol·K)

Product Description:

Product Introduction

Gr12 Ti-0.3Mo-0.8Ni titanium molybdenum nickel alloy plate is a kind of corrosion resistance titanium alloy, is in order to improve the pure titanium gap corrosion performance of the alloy, the alloy contains 0.3%Mo and 0.8%Ni, not only strengthen the alloy, but also for high temperature, low PH fireworks without or weak reducing acid has good gap corrosion resistance,  Its corrosion resistance is significantly better than pure titanium plate.  It also has good process plasticity and welding performance and has been widely used in chemical industry.

Standrd ASTM B265
Specification THK≥0.8mm    W≥100mm   Length(Max)6000mm
Surface Brightness
Technical Cold Rolling/Hot Rolling
Application Chemical Industry

Chemical Component

Grade Fe  (max) C (max) N (max) O (max) Ni Mo Residuals   Elelement    Max   Total
Gr12 0.3 0.08 0.03 0.25 0.6-0.9 0.2-0.4 0.1 0.4

Mechanical Property

Grade  Tensile   strength,Mpa (min) Yield   strength,MPa (min) Elongation,   % (min) Bend Test
Gr12 483 345 18 2T-2.5T
