Titanium (Ti) Sputtering Targets Overview
Our comprehensive offering of sputtering targets, evaporation sources and other deposition materials is listed by material throughout the website. Below you will find budgetary pricing for sputtering targets and deposition materials per your requirements. Actual prices may vary due to market fluctuations.
Titanium (Ti) General Information
Titanium is a common material found in a myriad of products including watches, drill bits, laptops, and bicycles, just to name a few. In pure form, it is lustrous and silvery-white in appearance. It has a melting point of 1,660°C, a density of 4.5 g/cc, and a vapor pressure of 10-4 Torr at 1,453°C. It is a sturdy material which is easily fabricated when heat is applied. Its strong, lightweight characteristics and excellent corrosion resistance make it ideal for ocean liner hulls, aircraft engines, and designer jewelry. Titanium is biocompatible so it can be found in surgical tools and implants. Titanium is generally evaporated in vacuum for the purposes of wear and decorative, semiconductor, and optical coatings.
Titanium target is one of the most common metal materials. Now let Baoji Xinjianchuang Metal Manufacturing Co., Ltd. explain to you what types of titanium target can be divided into?
Executive Standards: ASTM B 381, GB / T 3620.1, GB / T 3620.2, GB / T 15073
Main types: round target, plate target and tube target
Basic grades: TA1 / GR1, TA2 / Gr2, TA3 / GR3, TC4 / GR5, Zr702, Cr, TiAl (titanium aluminum ratio 7:35:58:2)
Purity: 2n8-4n
Density: 4.51 or 4.50 (TC4 / GR5)
Basic specification (mm)：
Round target: 60 / 65 / 70 / 80 / 85 / 90 / 95 / 100 (d) × 20 / 30 / 32 / 35 / 40 / 42 / 45 / 50 (T)
Plate target: 60 / 80 / 120 (W) × 6 / 8 / 12 (T) × 519 / 525 / 620 (L)&60-800(W)×6-40(T)×600-2000(L)
Tube target: 0.1-30.0 mm (W.T.) * 3-350 mm (O.D.) * 50-15000 mm (L)
Other specifications of target materials agreed by both parties can be provided. Our company has long-term processing experience, perfect processing equipment, reasonable price, we look forward to your call or e-mail.

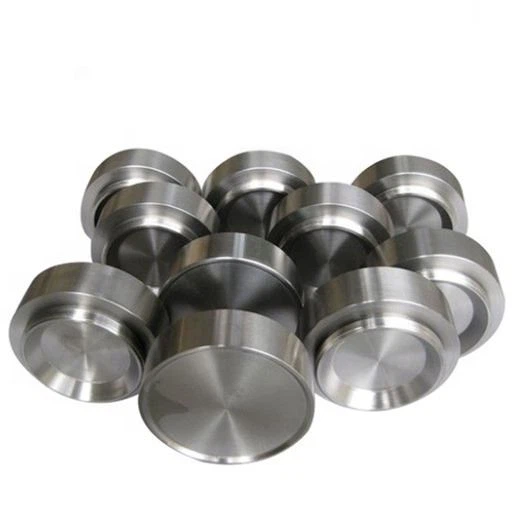

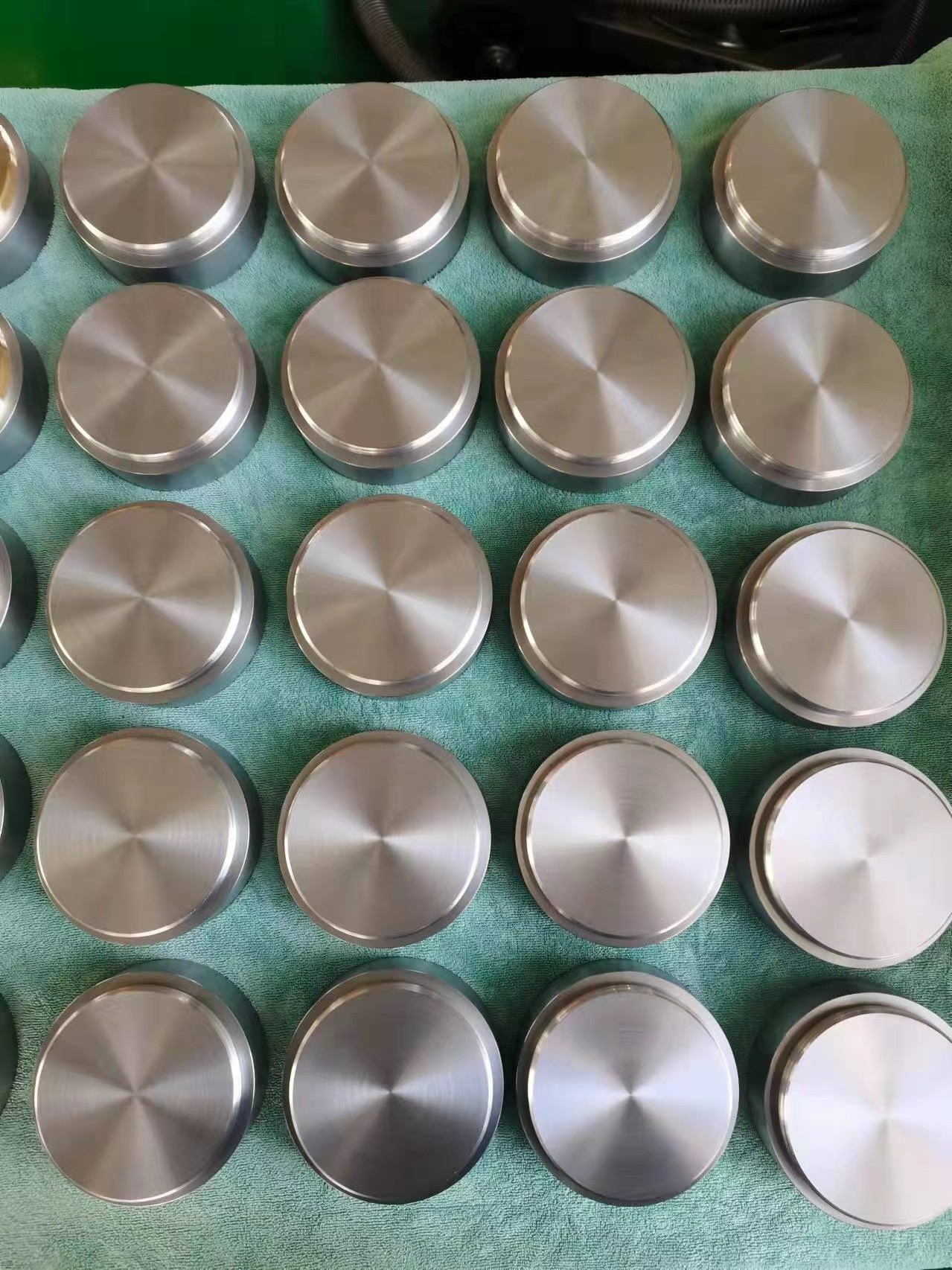

Product Name: Baoji Titanium target multi arc titanium target rotary titanium target titanium round target material: Ti
Purity: 99.995%
Grain size: < 100um
Production process: smelting hot isostatic pressing
Product application: mainly used in electroplating, ion plating, vacuum coating, decoration and function coating industry, plane display industry, optical data storage industry (optical disc industry), optical communication industry, glass coating industry (building glass and automobile glass) and other industries.
Welcome to send an inquiry to mira@xjcmetal.com at any time if you need.
Why Choose Us
1. Quality advantage
Baoji Xinjianchuang Metal Manufacturing Co., Ltd. is located in the center of "China Titanium Valley". It has been supplying grade five titanium rods in stock for many years.Titanium forging factory production, sponge titanium materials, material ratio in line with international standards.
2. Equipment advantages
Complete supporting equipment, the introduction of the industry's top roller drawing equipment and inspection and testing equipment, to ensure product output and quality stability. There are 800T fast forging press, 1T air hammer, 2T ingot furnace, annealing furnace, cold drawing machine, precision forging machine, grinder, planer, smelting furnace, etc.
3. Technical advantages
Focus on titanium and titanium alloy forging for more than ten years, master the domestic first-class titanium forging technology
4. Quality assurance
The quality system is complete and operates normally to ensure that each process is produced according to the regulations, and the product performance can be produced after passing the test by the third-party testing agency. Provide material list, if customer needs, can provide third party test report.
7. Qualification advantages
Baoji Xinjianchuang Metal Manufacturing Co., Ltd. has passed the ISO 9001-2015 certification.
FAQ:
Q: How long is your delivery time?
A: If it's available, it's usually 3-5 days. If the goods are out of stock, 5-7 days. Customize the special needs, renegotiate the construction period, and deliver the goods as soon as possible
Q: What are your terms of payment?
A: Up to $1000, 100% in advance. Payment > US $1000, 30% telegraphic transfer in advance, the balance paid before delivery.
Q: How do you guarantee the quality?
A: we'll send someone to deliver the products with the factory certificate. And if necessary, we can also conduct third party inspection on the products.
