Product


Titanium 6AL-4V Bar

Application:Industrial
Diameter:1.0-300mm
Shape:Round
Length:1000mm-12000mm
Technique:Rolled
Grade:Gr5
Material:Gr5
Color:sliver
Surface:polished
Inventroy:in stock
Standard:ASTM B348/AMS 4928
Advantage:High Performance
Certificates:ISO 9001:2015

Product Description:

Product Introduction

Titanium 6AL-4V Bar are useful for many reasons, regulated in size for easy transport, storage, and machining. Titanium 6AL-4V Bars are formed by hot forging followed by a sequence of hot rolling, polishing the material, machining, extrusion, casting, welding, and even spinning the materials for aerospace, automotive, agricultural, dental and medical, and food processing use, amongst more. Titanium bars deliver quality bulk material for further refinement per need.

Chemical Composition Limits

Weight %

Ti

C

Fe

N

Al

O

V

H

Y

Other

Ti-6Al-4V

bal

0.08

0.03

0.05

5.5-6.75

0.20

3.5-4.5

0.015

0.005

0.40

The chemical composition of our 6AL4V Titanium Bar complies with the requirements of GB / T 3620. The out-of-roundness of the bar after lapping  after hot working is less than half of its dimensional tolerance. The corrosion resistance of titanium is 10 times that of general stainless steel, and titanium metal is a metal with low human rejection. It is widely used in human implants and medical devices.

This 6AL4V Titanium Bar contains a certain amount of elements that stabilize the alpha phase, and are mainly composed of the alpha phase in equilibrium. In addition, it has a small specific gravity, good thermal strength, good weldability and excellent corrosion resistance. Compared with ordinary product on the market, our 6AL4V Titanium Bar can be an ideal material used in chemical equipment, seawater desalination, marine parts, electroplating industry, etc.

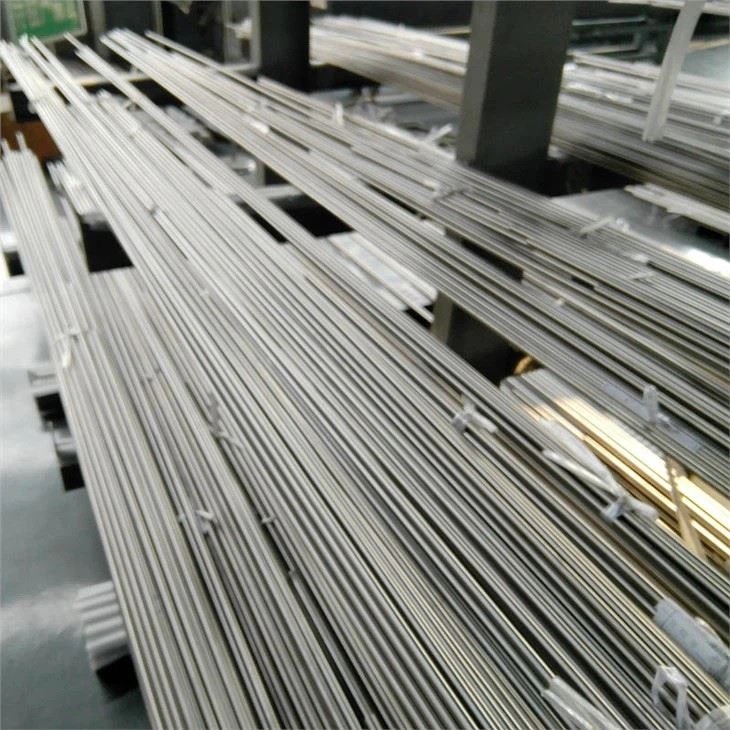

Titanium 6AL-4V Bar1

  Standard

ASTM B348,ASTM F67 ASTM F136,AMS 4928

Material

gr1,gr2,gr5(Ti-6Al-4V),gr7,gr9,gr12,gr23,Ti15333

Color

Matal gray; Color can be customized according to material

Feature

Titanium has low weight, excellent high strength, excellent corrosion resistance.

Technique

Radial Forging /Rolling

Application

Industrial,Metallurgy, Medical,Chemical,Petroleum,Aerospace,Deep Engineering

Tolerance

H6~H13, h10~h13

Diameter

Φ3-400mm

Length

≤6000mm

Test

 Ultrasonic testing

Surface

Polished surface/peeling surface/machined surface/grinding surface


Welcome to send an inquiry to mira@xjcmetal.com at any time if you need.
