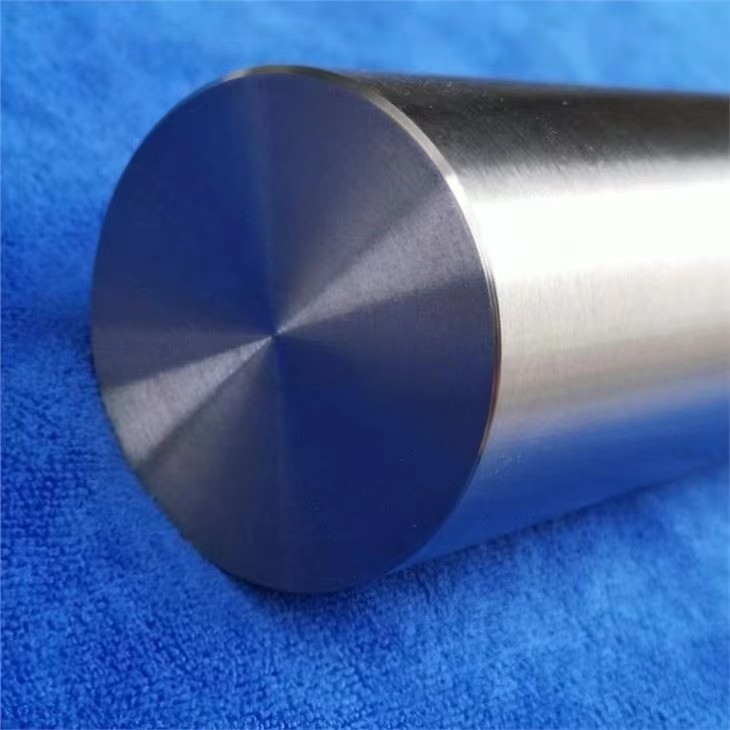

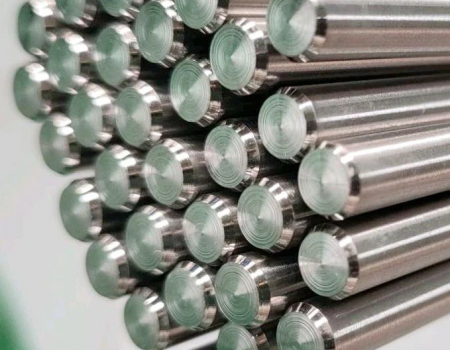

Medical Gr23 Titanium Bar

Application:Medical
Diameter:5.0-350mm
Length:MAX:6000mm
Technique:Rolled
Grade:Gr23 Ti6al4v eli titanium rod dental implants
Standard:ASTM F136 ISO 5832-3
Advantage:Corrosion Resistance
Certificates:ISO 9001:2015
Certificates:SGS
tol：h6-H9
Surface1:polished

Medical Gr23 Titanium Bar is the higher purity version of Ti 6Al-4V. It is the top choice for any sort of situation where a combination of high strength, light weight, good corrosion resistance and high toughness are required. It has a superior damage tolerance to other alloys.

	Al	V	Fe	O	C	N	H	Y	Others,Each	Others,Total	Ti
MIN	5.5	3.5	--	--	--	--	--	--	--	--	--
MAX	6.5	4.5	0.25	0.13	0.08	0.03	0.0125	0.005	0.1	0.4	Balance

Tolerance of diameter

Diameter(mm)	h7	h8	h9	h10	h11	h12
Diameter(mm)	Tolerance precision (um)
3Max	10	14	25	40	60	100
3~6	12	18	30	48	75	120
6~10	15	22	36	58	90	150
10~18	18	27	43	70	110	180
18~30	21	33	52	84	130	210
30~50	25	39	62	100	160	250
50~80m	30	46	74	120	190	300
"h"stands for a tolerance range(-x,+0),on the contrary,"H"stands for a tolerance(-0,+X)

Medical Gr23 Titanium Bar Main applications

Medical and dental implants

1. The chemical composition of medical gr23 titanium bar should meet the requirements of GB/T 3620.1, and the allowable deviation of the chemical composition should meet the requirements of GB/T 3620.2 when the buyer is re-inspected.

2. The diameter or side length of the hot processed bar and its allowable deviation should meet the requirements of Table 1.

3. After hot processing, after turning (polishing) the bar and cold rolling, the allowable deviation of the diameter of the cold drawn bar shall meet the requirements.

4. The out-of-roundness of the turned (polished) bar after hot working should not be more than half of its dimensional tolerance.

5. The indefinite length of the processed medical gr23 titanium bar is 300-6000mm, and the indefinite length of the annealed bar is 300-2000mm, and the fixed or multiple length should be within the range of indefinite length. The allowable deviation of the fixed length is + 20mm; the length of the double ruler shall also be included in the cutting amount of the bar, and the fixed length or the length of the ruler shall be indicated in the contract.

Welcome to send an inquiry to mira@xjcmetal.com at any time if you need.
