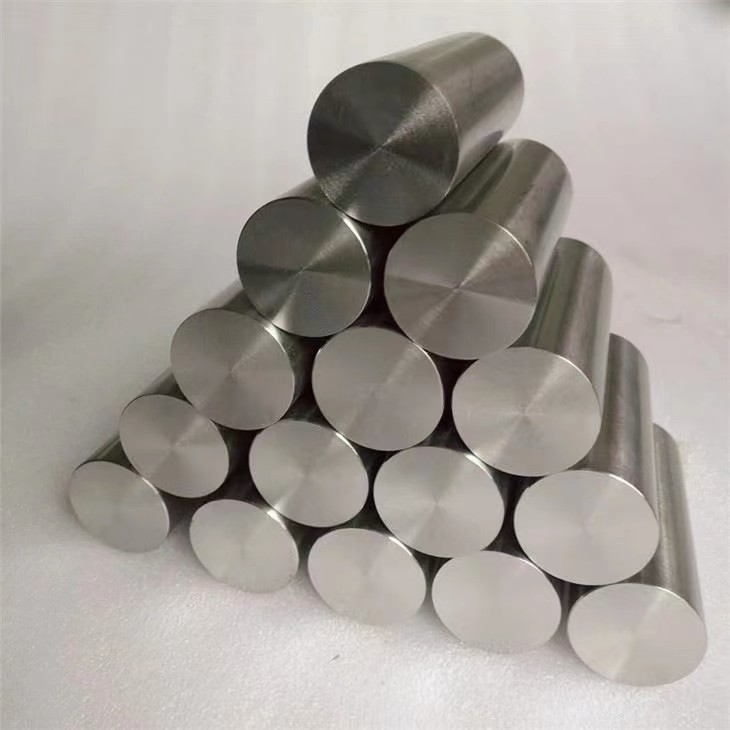

Gr1 Titanium Rod

Standard:ASTM B348, ASTM F67, AMS4928
Shape:titanium round rod/bar, titanium square rod/bar titanium rectangle rod/bar, titanium hex rod/bar
Application:Metallurgy, electronics, medical, chemical, petroleum, pharmaceutical, aerospace

Titanium Gr 1 is a titanium alloy that contains a mixture of titanium and other chemical elements. Titanium Gr 1 alloy offers very high tensile strength and toughness in extreme temperature conditions. They offer excellent corrosion resistance and they are usually light in weight. Titanium Gr 1 alloy features excellent priorities and provides an excellent strength-to-density ratio. It has low thermal expansion and provides excellent thermal stresses in titanium structures. They offer the best formability, weldability, and high-affect sturdiness. Titanium Gr 1 round bars and rods has excellent durability, smooth surface, and provide many other advantageous properties.

Item Name	ASTM F67/ ASTM B348 GR1 polished titanium bar
Material	Gr1 Titanium Rod
Standard	ASTM B348, ASTM F67, AMS4928
Brand	GR1
Shape	titanium round rod/bar, titanium square rod/bar titanium rectangle rod/bar, titanium hex rod/bar
Application	Metallurgy, electronics, medical, chemical, petroleum, pharmaceutical, aerospace

1.Chemical composition

Element	Composition,%
	Grade1	Grade2	Grade3	Grade4	Grade5	Grade6	Grade7	Grade9	Grade11	Grade12
N max	0.03	0.03	0.05	0.05	0.05	0.03	0.03	0.03	0.03	0.03
C max	0.08	0.08	0.08	0.08	0.08	0.08	0.08	0.08	0.08	0.08
H max	0.05	0.015	0.015	0.015	0.015	0.015	0.015	0.015	0.015	0.015
Fe max	0.2	0.3	0.3	0.5	0.4	0.3	0.5	0.25	0.2	0.3
O max	0.18	0.25	0.35	0.4	0.2	0.2	0.25	0.15	0.18	0.25
Al					5.5-6.75	4.0-4.6		2.5-3.5
V					3.5-4.5			2.0-3.0

2. Tensile requirements

grade	Tensil strength(min)		Yeild strength(min)		Elongation(%)
	ksi	MPa	ksi	MPa
1	35	240	20	138	24
2	50	345	40	275	20
3	65	450	55	380	18
4	80	550	70	483	15
5	130	895	120	828	10
7	50	345	40	275	20
9	90	620	70	438	15
12	70	438	50	345	18

Gr1 Titanium Rod pure titanium rod

Main applications: Corrosion-resistant pipelines, valves, pumps, corrosion-resistant structural parts and stamping parts for ships, parts of seawater desalination systems, heat exchangers, pump bodies, distillation towers, cooling towers, agitators, etc. in the chemical industry.

Welcome to send an inquiry to mira@xjcmetal.com at any time if you need.
