Chromium Target cr target factory

The biggest size: Φ 800*2000mm
Density: 99%min
Grain size: 100um max
O: 1000ppm max
Purity: 2N5-4N (99.5%-99.99%)
More than 10 years' manufacture experience
Exquisite technology
Outstanding quality

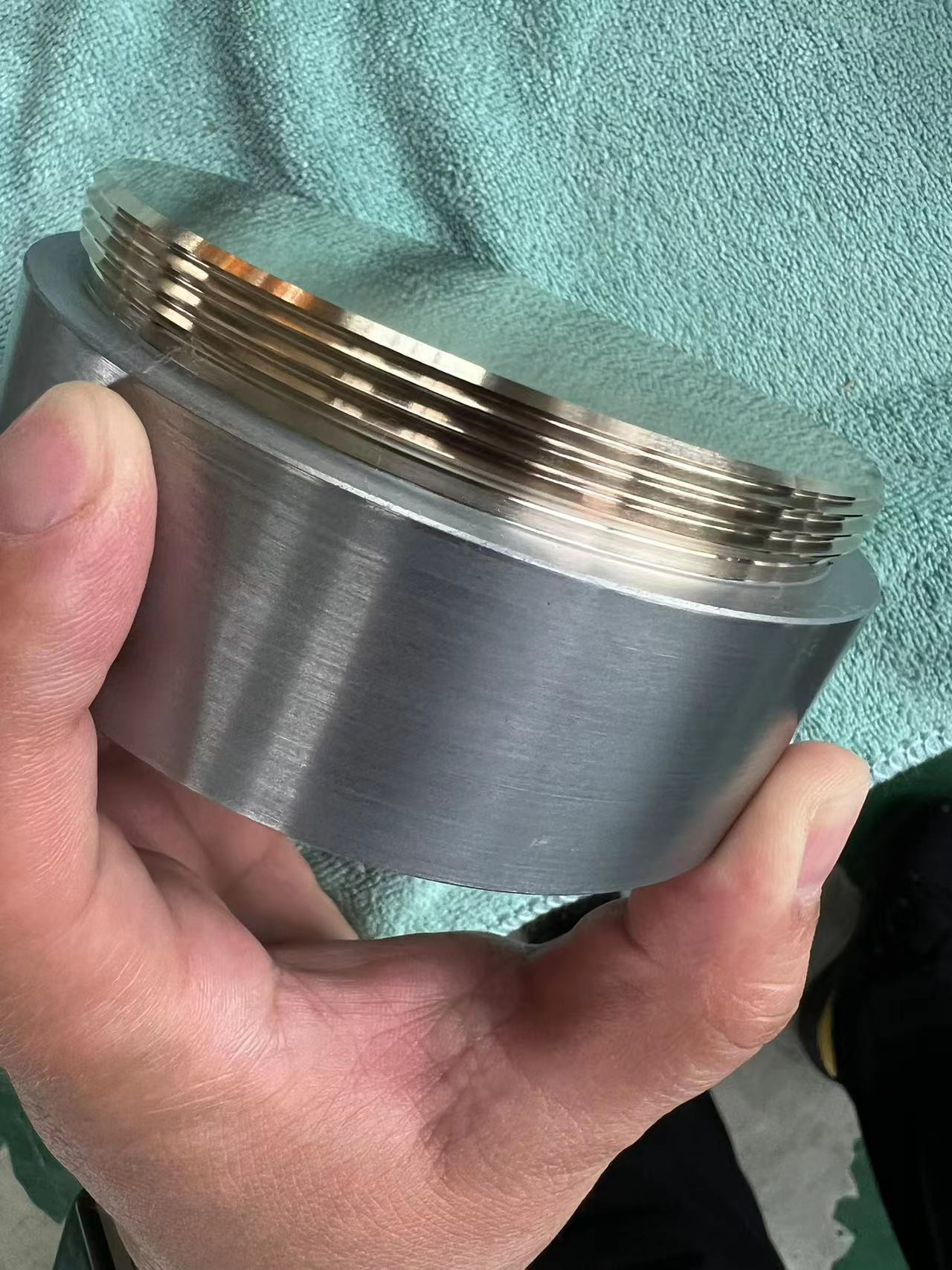

Our chromium target including rectangular target, arc target, ring target and large aspect ratio integral forming tube target is manufactured by hot isostatic pressing technology and has the advantages of controllable purity and density, fine and uniform grain size and long service life.

Chromium target		Product performance
/% Purity		99.5	99.95
/g/cm3 Density		≥7.12	≥7.12
/μm Grain size		≤100	≤100
/ppm Total content of metallic impurities		≤5000	≤500
/W/m.K Thermal conductivity		60	100
/1/K Coefficient of thermal expansion		8×10-6	8×10-6
/mm Size	Planar target	≤1500×500	≤1500×500
	Rotating target	Integral formingby HIP Length≤2000 Thickness≤15	Integral formingby HIP Length≤2000 Thickness≤15

2N5 (Trace elements)PPM ≥7.12g/cm3

Component	（Fe）	(Al)	(Si)	(C)	（S）	(O)	(N)
（Standard）	≤1500	≤1200	≤1500	≤200	≤50	≤1400	≤300
（Test values）	980	300	600	62	50	1200	200

2N8 (Trace elements)PPM ≥7.12g/cm3

Component	（Fe）	(Al)	(Si)	(C)	（S）	(O)	(N)
（Standard）	≤800	≤300	≤400	≤200	≤50	≤1000	≤100
（Test values）	740	78	92	84	50	340	30

3N (Trace elements)PPM ≥7.12g/cm3

Component	（Fe）	(Al)	(Si)	(C)	（S）	(O)	(N)
（Standard）	≤500	≤100	≤150	≤150	≤30	≤500	≤100
（Test values）	290	47	80	90	28	450	50

3N5 (Trace elements)PPM ≥7.12g/cm3

Component	（Fe）	(Al)	(Si)	(Cu)	（Ｎi)	(C)	（S）	(O)	(N)
（Standard）	≤100	≤50	≤50	≤10	≤50	≤50	≤30	≤150	≤80
（Test values）	50	45	40	7	10	24	27	137	30

The technological development trend of Chromium target materials is closely related to the development trend of thin film technology in the downstream application industry. With the advancement of thin film products or component technology in the application industry, the target technology of chromium targets should also change accordingly.

Welcome to send an inquiry to mira@xjcmetal.com at any time if you need.
